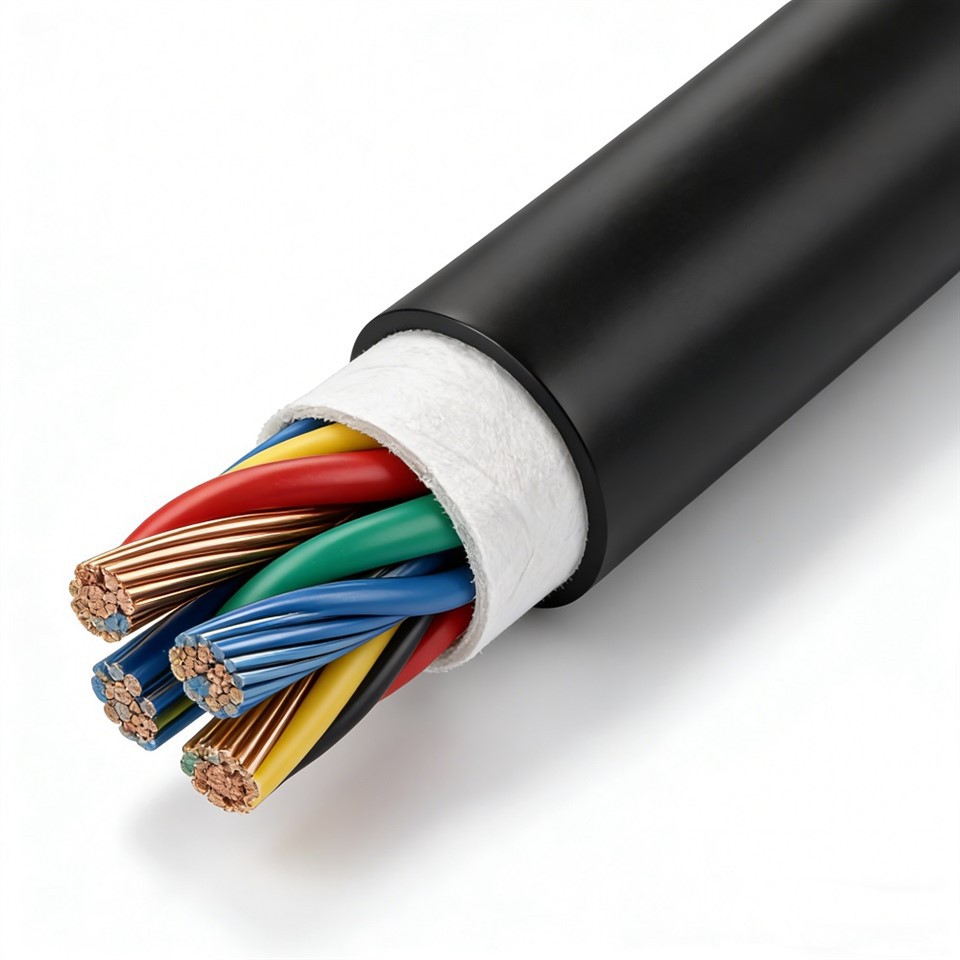

PVC flexible cable is a high-performance flexible cable designed for low-load scenarios.
This flexible PVC cable comes with a flame-retardant PVC outer sheath and fine stranded bare copper conductors, making it highly resistant to bending. It has a minimum bending radius of 12.5 times the cable diameter and can operate reliably between -15°C and +70°C.Designed to withstand up to 5 million double bending cycles, it ensures stable performance and long service life. Certified by CE, and CCC, the PVC flexible cable is perfect for woodworking machinery, packaging equipment, and logistics systems. We offer secure packaging for safe transportation.
Service life guaranteed by warranty commitment
|
Dual circulation |
1 Million Times |
3 Million Times |
5 Million Times |
|||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] Overhead |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
|
+5/+15 |
3 |
20 |
≤10 |
15 |
16 |
17 |
|
+15/+60 |
12.5 |
13.5 |
14.5 |
|||
|
+70/+70 |
15 |
16 |
17 |
|||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Features
- Core Structure: Constructed with fine bare copper strands conforming to EN 60228, providing exceptional flexibility. It is paired with high-performance PVC insulation for superior mechanical strength. The cores are twisted with optimized short lay lengths to further improve bending resistance.
- Outer Sheath: Made from a low-viscosity PVC compound in RAL 9005 black, specially engineered for drag chain applications. It provides reliable flame-retardant protection and meets IEC 60332-1-2 and VW-1 flame standards.
Advantages
Flexible and budget-friendly
You don't need to spring for expensive specialty cables on everyday control jobs-this one gives you all the flexibility and durability you need for light-duty applications.
Built to last
It's designed to handle the constant movement and wear of drag chain systems, withstanding up to 5 million back-and-forth bending cycles. That kind of ruggedness keeps your operations running reliably over the long haul.
Peace of mind included
It's flame-retardant and silicone-free, meeting PV 3.10.7-1992 standards. That means less fire risk, plus protection against corrosion-exactly what you want in safety-critical indoor environments.
Typical Application Scenarios
FAQ
Is this used for a drag chain?
Yes, it's suitable for drag chain use.
Can CF880 be used outdoors?
To be honest, this cable is mainly intended for indoor use. Could you install it outdoors? Technically you can, but you'll need to add extra waterproofing on your own. Even then, it doesn't resist UV rays, so sunlight will gradually damage the sheath over time. It's really not worth the hassle.
What's the difference between CF880 and CF881?
The main difference is shielding. CF881 comes with a tinned copper braided shield (around 60% coverage) that effectively blocks electrical interference. That makes it the better choice if you're using it near motors, drives, or other equipment that produces electrical noise. CF880 has no shielding at all - it works perfectly fine in quieter, cleaner environments, but won't perform as well where there's a lot of electrical interference.
