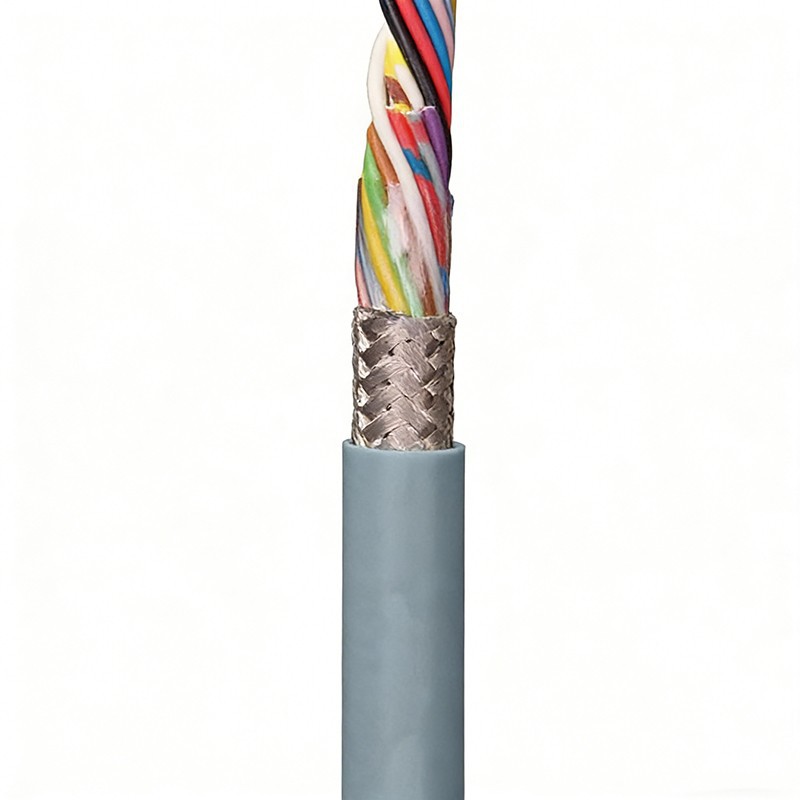

This PVC data cable is a dependable shielded option built for medium-load industrial environments.
It uses a low-viscosity, oil-resistant PVC outer jacket and tin-plated copper braided shielding, delivering strong anti-interference performance and stable data transmission.The cable has a minimum bending radius of 5×d for fixed installation and 10×d for drag chain use, and works reliably at temperatures from -15°C to +70°C. It can withstand up to 5 million back-and-forth bending cycles, making it ideal for overhead warehouse systems and packaging machinery.
Service life guaranteed by warranty commitment
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
||||
|
Applicable Temperature Range[°C] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
|||
|
＜10m |
≥10m |
＜10m |
≥10m |
＜10m |
≥10m |
||
|
＋5/＋15 |
≤50 |
12.5 |
15 |
13.5 |
16 |
14.5 |
17 |
|
＋15/+60 |
10 |
12.5 |
11 |
13.5 |
12 |
14.5 |
|
|
+60/+70 |
12.5 |
15 |
13.5 |
16 |
14.5 |
17 |
|
|
In practical applications, it can achieve a higher number of dual cycles. |
|||||||
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Typical Application Scenarios
• For moderate load
• Mild oil resistance
• For indoor use, it is also suitable for outdoor applications when the outdoor temperature exceeds 5°C.
• Applicable for horizontal overhead and taxiing applications with a travel distance of less than 50 meters.
•Applicable to storage and retrieval equipment in elevated warehouses, processing equipment/packaging machinery, logistics equipment, and indoor cranes.
Features
• Crafted with specially designed fine bare copper strands (compliant with EN 60228), this cable delivers tailored flexibility for medium-load data transmission, paired with high-mechanical-performance TPE insulation that enhances wear resistance during repeated drag chain movement. Core wires adopt a short-pitch layered stranding structure, optimizing stability for continuous reciprocating motion.
• Globally certified to CE, CCC, RoHS-II, and NFPA 79-2012 standards, it meets strict safety and compatibility requirements for use in exported industrial equipment and global manufacturing setups.
Advantages
• Its 90% optical coverage shield stands out from standard 60-70% coverage cables, ensuring superior EMI protection that maintains signal integrity in high-interference industrial settings-ideal for packaging machinery and logistics control systems.
• The oil-resistant PVC sheath provides cost-effective protection against occasional oil contamination, eliminating the need for premium PUR cables in scenarios where full immersion isn't a risk, balancing performance and affordability.
FAQ
CF240 is rated for medium loads with a 50m maximum stroke-how does it perform in long-term drag chain use, and what's its cycle life?
Engineered for drag chain applications, CF240 supports up to 5 million double cycles under standard conditions (3m/s overhead speed, 20m/s² acceleration) and a 50m stroke. Its low-viscosity PVC sheath reduces friction with drag chain links, while the short-pitch layered core stranding minimizes fatigue. For strokes beyond 50m, we recommend upgrading to high-load data cables like CF211 (100m stroke) for better durability.
