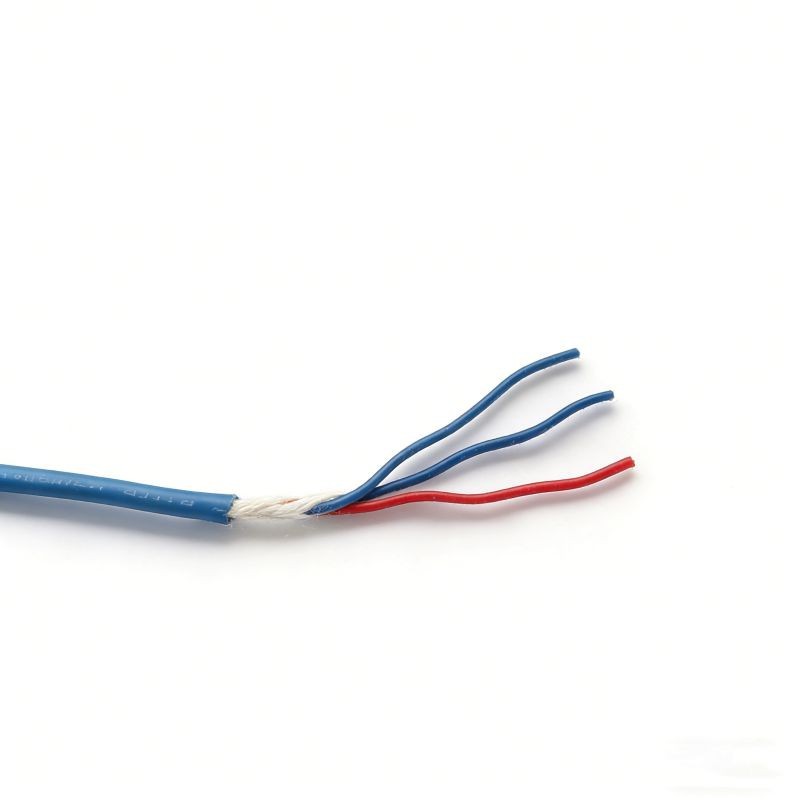

Oilproof electrical cable is a high-load cable with oil-resistant properties.
This oilproof electrical cable adopts a low-viscosity oil-resistant PVC jacket, supporting 10m/s speed and 80m/s² acceleration. With a 6.8xd bending radius and 1000 million double cycles, it operates from -15°C to +70°C, suitable for 100m-stroke applications like automated warehouses. The oilproof electrical cable is CE/CCC/NFPA certified. We provide quality guarantees and fast logistics.
Service life guaranteed by warranty commitment
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
||||
|
Applicable Temperature Range[°C] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
|||
|
＜10m |
≥10m |
＜10m |
≥10m |
＜10m |
≥10m |
||
|
＋5/＋15 |
≤50 |
7.5 |
10 |
8.5 |
11 |
9.5 |
12 |
|
＋15/+60 |
6.8 |
7.5 |
7.8 |
8.5 |
8.5 |
9.5 |
|
|
+60/+70 |
7.5 |
10 |
8.5 |
9.5 |
9.5 |
12 |
|
|
In practical applications, it can achieve a higher number of dual cycles. |
|||||||
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Typical Application Scenarios
• For extremely high loads
• Mild oil resistance
• For indoor use, it is also suitable for outdoor applications when the outdoor temperature exceeds 5°C
• Applicable for horizontal overhead and taxiing applications with a travel distance of less than 100 meters
•Elevated warehouse storage and retrieval equipment, processing equipment/machining tools, rapid conveying systems, Indoor crane
CF5 for stent control unit: used in long stroke applications along the longitudinal axis.
Drag chain: E4/00 series drag chain with steel guide grooves
Features
• Core wires adopt a twice-laid anti-torsion stranding structure for stability in drag chain use, with identification following DIN 47100: color coding for smaller cores and a yellow-green ground wire for larger configurations.
• Operating across a temperature range of -15°C (fixed installation) to +70°C (all use scenarios), it adapts to indoor and mild outdoor environments (5°C+). Electrical specifications include a 300/500V rated voltage and 2000V test voltage (per DIN EN 50396), with a minimum bending radius of 4xd (fixed), 5xd (non-drag chain), and 6.8xd (drag chain).
• Globally certified to CE, CCC and NFPA standards, it meets safety requirements for industrial applications ranging from automated warehouses to processing machinery.
Advantages
• Its dual-insulation design (TPE/PVC) optimizes performance for different core sizes, avoiding the one-size-fits-all compromise of other cables-smaller cores stay flexible for tight routing, while larger cores gain rigidity for high-load stress.
FAQ
CF5 is rated for high loads with a maximum acceleration of 80m/s²-how does its structure support such intense performance compared to medium-load cables like CF130.UL?
CF5's high-load capability comes from its reinforced design: fine bare copper strands (EN 60228) for flexibility, TPE/PVC insulation (depending on core cross-section) for mechanical strength, and twice-laid anti-torsion core stranding. Unlike medium-load cables (e.g., CF130.UL with 20m/s² acceleration), it's engineered to withstand the stress of 10m/s overhead speed and 80m/s² acceleration, making it ideal for high-speed conveyors or vertical lifting equipment. The oil-resistant PVC sheath also adds durability in high-wear drag chain use.
