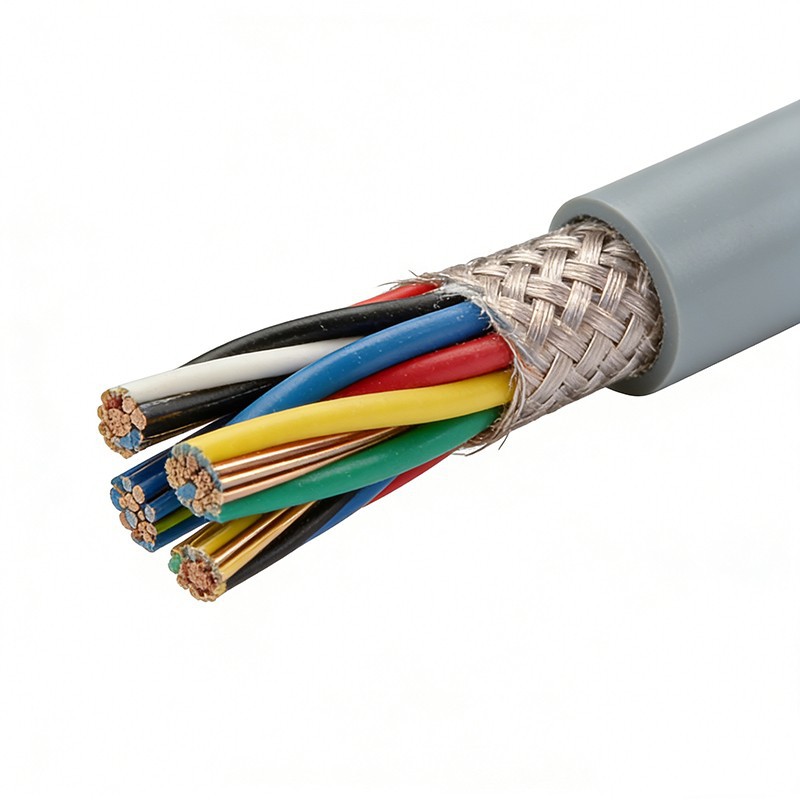

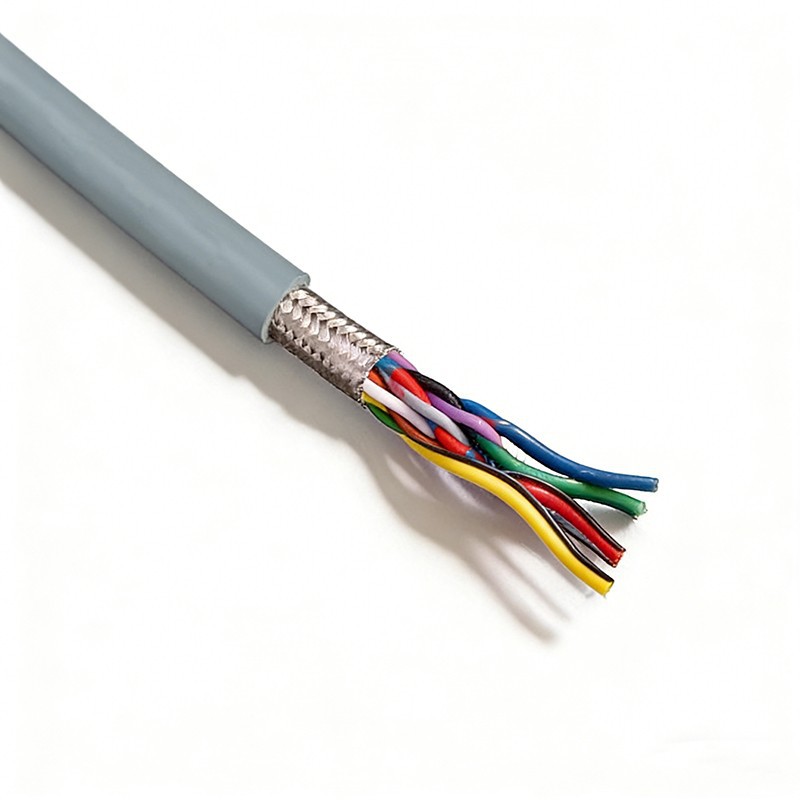

Drag Chain Cable series are high-performance cables for industrial drag chains, supporting medium to extreme loads with PVC/PUR/TPE sheaths. Featuring flexible stranded conductors, TPE insulation, and 90% tinned copper shielding, they ensure stable transmission and strong anti-interference. With a wide temperature range of -55°C to +100°C, 4×d–10×d bending radius, 500M–1000M bending cycles, and up to 400m stroke, they meet demands for automation, logistics and marine equipment, with standard electrical specs and easy color-coded wiring.
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Features
• Designed for continuous drag chain motion, this cable uses EN 60228 ultra-fine copper strands with short-pitch stranding and a reinforced tensile core. It offers oil-resistant PVC, hydrolysis/UV-stabilized PUR and high-temperature TPE sheaths for medium to extreme loads, operating from -55°C to +100°C.
• All models feature 90% tinned copper braid shielding against industrial EMI, with dual shielding available for EMC sensitive uses. It offers 4×d–10×d bending radius, 500M–1000M flex cycles, 300/300V (500V for coaxial), 0.14–1.0mm² and 2–42 cores.
Advantages
• Load & Scenario Diversification
Covers medium (20m/s² acceleration), high (50m/s²) and extreme (100m/s²) load levels, with PVC/PUR/TPE sheaths for cost-effective indoor, oil-exposed outdoor and ultra-low/high temperature extreme environments-one cable series meeting all industrial drag chain motion needs, no need for separate cable selection for different workshops.
FAQ
What is the suitable Drag Chain Cable model for medium-load 50m stroke indoor automation equipment?
Recommend CF240 (PVC sheath) for cost-effectiveness, with 500 million double cycles, 3m/s max speed and Class 2 oil resistance, perfectly matching medium-load indoor drag chain motion needs.
