Radiation Resistant Cable is a durable cable for harsh outdoor industrial environments.
This Radiation Resistant Cable features a UV-stabilized TPE jacket and shielded coaxial structure, resisting sun radiation and EMI. Operating from -35°C to +100°C and supporting 400m stroke, it's perfect for offshore platforms and outdoor cranes. With 50/75Ω impedance and 1000 million double cycles, the Radiation Resistant Cable ensures stable high-frequency signal transmission. CE/RoHS-II certified, we provide wooden box packaging and 3-year warranty.
Service life guaranteed by warranty commitment
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
|||||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
||
|
Overhead |
Glide |
|||||||
|
－35/－25 |
10 |
100 |
≤400 |
12.5 |
13.5 |
14.5 |
||
|
－25/+60 |
5 |
10 |
11 |
12 |
||||
|
+60/+70 |
12.5 |
13.5 |
14.5 |
|||||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||||
Product Code,Coaxial element,Maximum Outer Diameter,Copper Content,Weight,Characteristic impedance, conductor/core wire diameter
Typical Application Scenarios
Features

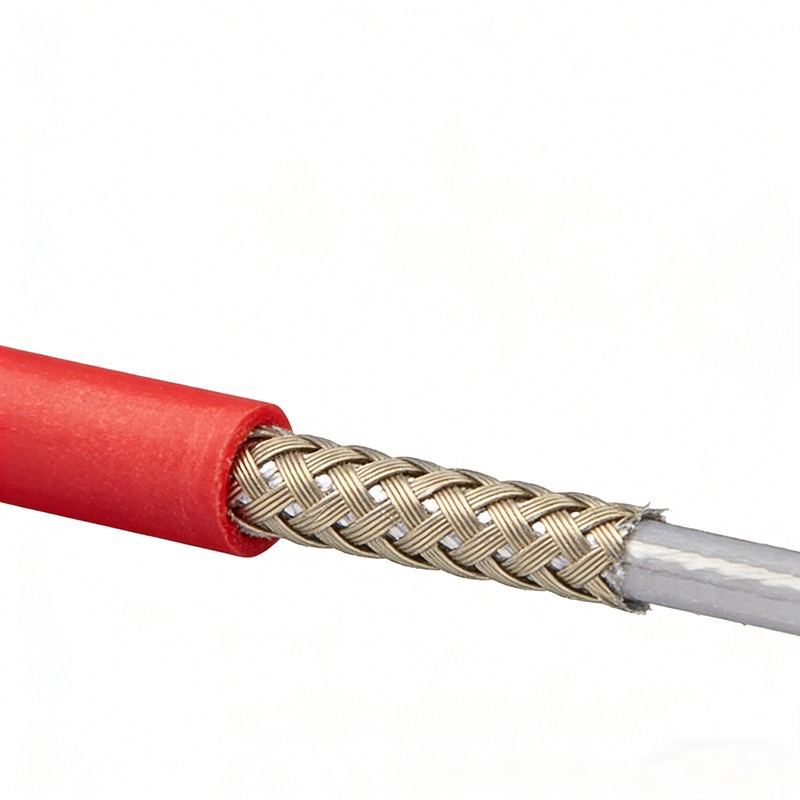

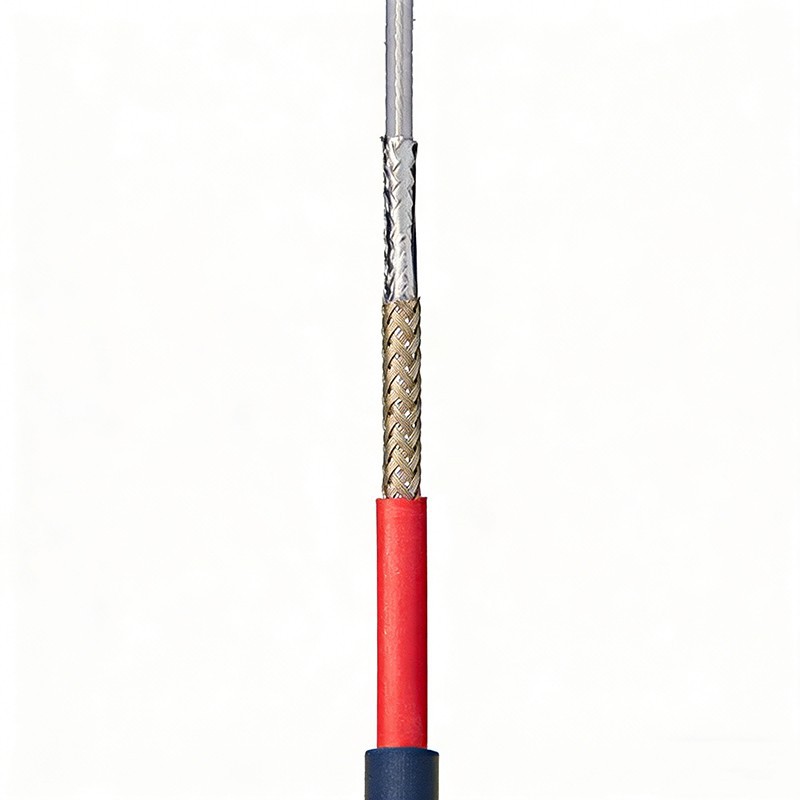

• CFKoax is a heavy duty TPE coaxial cable for high frequency signals. It uses a high purity solid copper conductor and low loss FEP/PE insulation, with dual tin plated copper braid shielding for strong interference protection in RF and video applications.
• Its high-performance TPE outer sheath offers excellent oil, UV, and hydrolysis resistance, ideal for harsh industrial and outdoor use. Optimized short-pitch stranding ensures great drag-chain flexibility with a compact bending radius for different installations.
Advantages
• CFKoax uses precision FEP/PE insulation for ultra low high frequency signal loss, ensuring stable RF, video and measurement transmission up to 400m without repeaters.
• Featuring a dual tin plated copper braid shield with over 70dB EMI protection, it effectively blocks interference from industrial equipment and prevents signal reflection. With 40% better anti-interference than single-shield cables, it is ideal for semiconductor testing and offshore RF control.
FAQ
What makes CF Koax's coaxial structure different from ordinary industrial coaxial cables, and how does it ensure low-loss high-frequency signal transmission in extreme-load drag chain use?
CF Koax features a specialized FEP/PE dielectric insulation core (FEP for CFKoax1/3, PE for CFKoax2) paired with a dual tin-plated copper braid shield (70% wire coverage, 90% optical coverage)-a design exclusive to extreme industrial use. Unlike ordinary coaxial cables with single PE insulation and thin shielding, its low-loss dielectric minimizes signal attenuation at high frequencies (≤0.0005 tanδ at 10GHz), and the dual shield blocks EMI without causing signal reflection. The short-pitch core stranding optimizes flexibility for drag chain movement, ensuring stable RF signal transmission even under 100m/s² acceleration.
