PVC insulated flexible cables have double insulation, EN 60228 conductors and short‑pitch stranding for excellent flexibility.
With 500V test voltage, 60–80% shielding, flame retardancy and global certifications, they suit indoor industrial flexible connections.
Service life guaranteed by warranty commitment
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
|||||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
||
|
Overhead |
Glide |
|||||||
|
＋5/＋15 |
3 |
30 |
≤20 |
15 |
16 |
17 |
||
|
＋15/+60 |
2 |
12.5 |
13.5 |
14.5 |
||||
|
+60/+70 |
15 |
16 |
17 |
|||||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||||
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Typical Application Scenarios
• For moderate load
• Mild oil resistance
• For indoor use; also applicable when outdoor temperature exceeds 5°C.
• Suitable for overhead applications and taxiing applications with a travel distance of less than 20 meters.
•Applicable to processing equipment/machines, logistics equipment, and indoor cranes.
Features

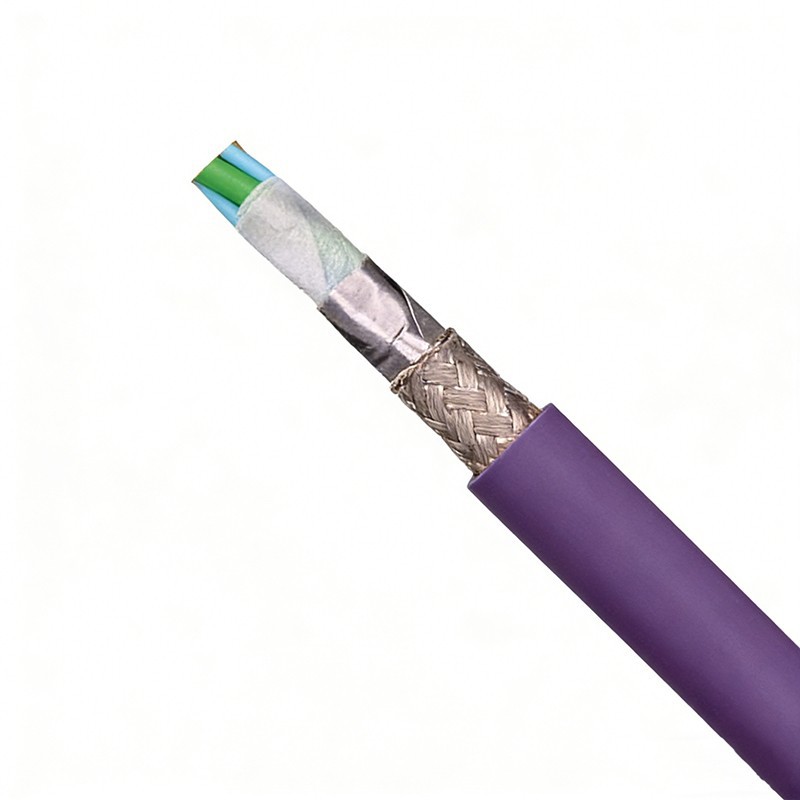

• CFBUS.PVC is designed for medium-load industrial bus transmission in drag chains. It uses EN 60228 high-flexibility bare copper strands with short-pitch stranding for fatigue-resistant repeated bending. Its insulation supports Profibus/CAN-Bus/Profinet/Ethernet with 150/120/100Ω impedance for lossless fieldbus and data transmission.

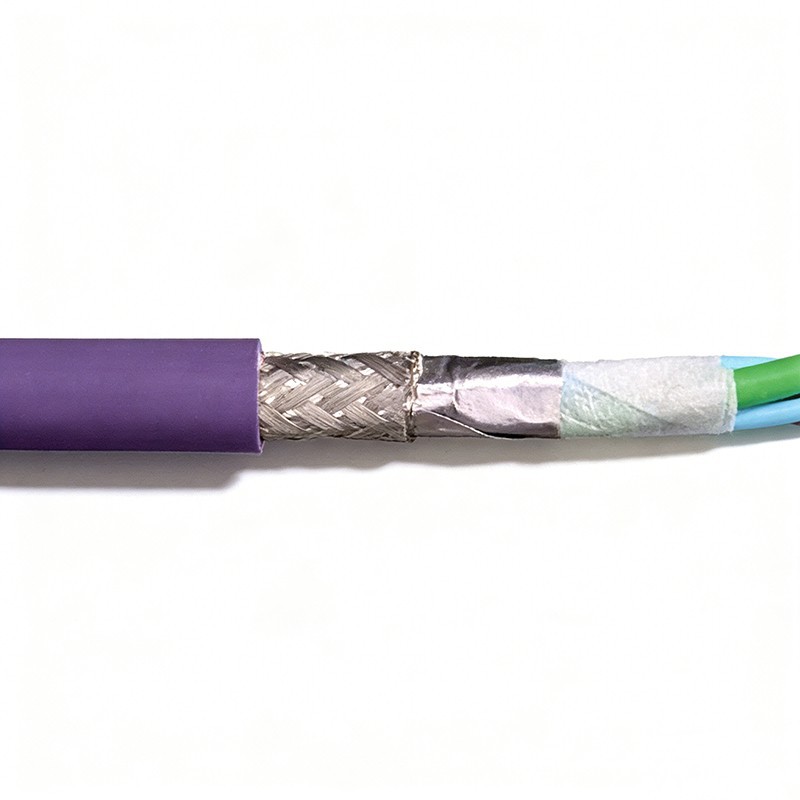

• With 80% tin-plated copper braid shielding, it effectively resists medium-frequency industrial EMI. Its oil-resistant, low-friction purple PVC sheath meets DIN VDE 0281 Part 13, ideal for drag chain applications.
• It features graded bending radii: 12.5×D (drag chain), 10×D (flexible connection), 7×D (fixed laying). Operating temperatures range from +5°C~+70°C (drag chain), -5°C~+70°C (static) and -15°C~+70°C (fixed), complying with EN 60811-504 and DIN EN 50305 for medium-load indoor industrial use.
Advantages
• CFBUS.PVC balances performance and cost for medium-load industrial bus transmission. It offers Class 2 oil resistance beyond CF888 without high PUR/TPE costs, skipping extreme-load structures for cost efficiency. Ideal for oil-splashed indoor machinery, logistics and machine tool systems.
• The 80% tinned copper shield provides stronger EMI protection than CF888's 60% shield, blocking medium-frequency interference for stable bus communication. Its single-point grounding design avoids crosstalk and ground loops with simple installation.
FAQ
Can PVC insulated flexible cable be used for outdoor laying?
No, it's designed for indoor use only, with no UV stabilization. For outdoor, choose PUR/TPE sheath cables.
