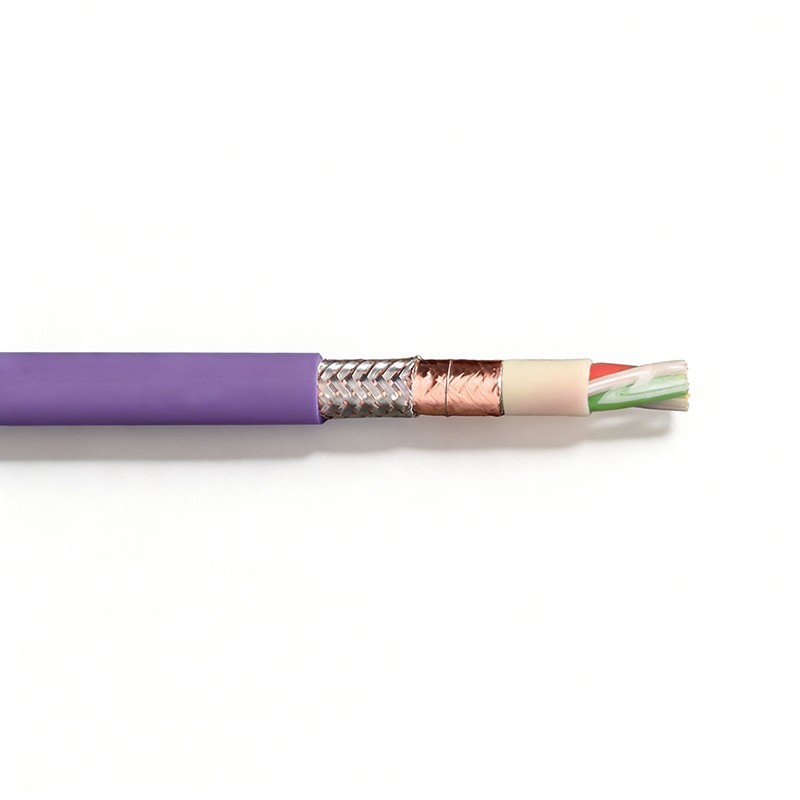

Heavy-duty industrial cables feature TPE sheath and reinforced structure for extreme loads.
With EN 60228 conductors, central tensile core, 90% shielding, -35℃~+70℃ operating temp, high oil and hydrolysis resistance, and global certifications, they support long-stroke, high-cycle heavy-duty transmission for semiconductors, cranes and automated warehouses.
Typical Application Scenarios
• For extremely high loads
• fully oil-resistant
• Indoor and outdoor applications protected from direct sunlight
• Applicable for horizontal overhead and taxiing applications with a travel distance of less than 400 meters
• For use in elevated warehouse storage and retrieval equipment, processing equipment/machining tools, rapid conveying systems, semiconductor equipment
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Product code, characteristic wave impedance, core wire group
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum
Outer Diameter,Copper Content,Weigh
Product code, characteristic wave impedance, core wire group
Service life guaranteed by warranty commitment
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
|||||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
||
|
Overhead |
Glide |
|||||||
|
Product code CFBUS.001-.045 -35/-25 |
10 |
6 |
100 |
≤400 |
12.5 |
13.5 |
14.5 |
|
|
-25/+60 |
10 |
11 |
12 |
|||||
|
+60/+70 |
12.5 |
13.5 |
14.5 |
|||||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||||
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
|||||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
||
|
Overhead |
Glide |
|||||||
|
Product code CFBUS.050-.070 -35/-25 |
10 |
6 |
100 |
≤400 |
15 |
16 |
17 |
|
|
-25/+60 |
12.5 |
13.5 |
14.5 |
|||||
|
+60/+70 |
15 |
16 |
17 |
|||||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||||
Features
• CFBUS is a heavy-duty drag chain bus cable for high-motion automation. It uses EN 60228 extra-fine copper strands for fatigue resistance, supports Profibus/CAN-Bus/Profinet/Ethernet/CC-Link with stable impedance, ensuring reliable data transmission.
• Featuring full tin-plated copper braid shielding, it delivers excellent EMC performance against industrial interference. Its flexible TPE sheath is oil-, hydrolysis- and abrasion-resistant, ideal for long-term drag chain applications.
Advantages
• CFBUS is engineered for extreme dynamic stress - far beyond standard PVC or PUR bus cables. It withstands 100 m/s² acceleration and 400 m stroke without core breakage or signal drift, making it ideal for high speed robots and automated storage systems.
• The full braid shield provides consistent interference suppression for industrial bus systems. Impedance accuracy ensures stable transmission for Profinet, CAN Bus, and Ethernet without data loss or re transmission.
• The TPE outer layer offers superior oil resistance, hydrolysis resistance, and low temperature flexibility compared to PVC. It does not become brittle in cold conditions or swell in oil mist, greatly extending service life in machine tools and processing equipment.
FAQ
What makes CFBUS different from standard PVC and PUR bus cables in long term drag chain use?
CFBUS uses a specially formulated TPE sheath and reinforced anti fatigue stranding, enabling up to 1000 million double cycles - much longer than PVC or PUR alternatives. It also supports 100 m/s² acceleration and 400 m stroke, making it ideal for heavy duty, high speed automation where standard bus cables fail quickly.
