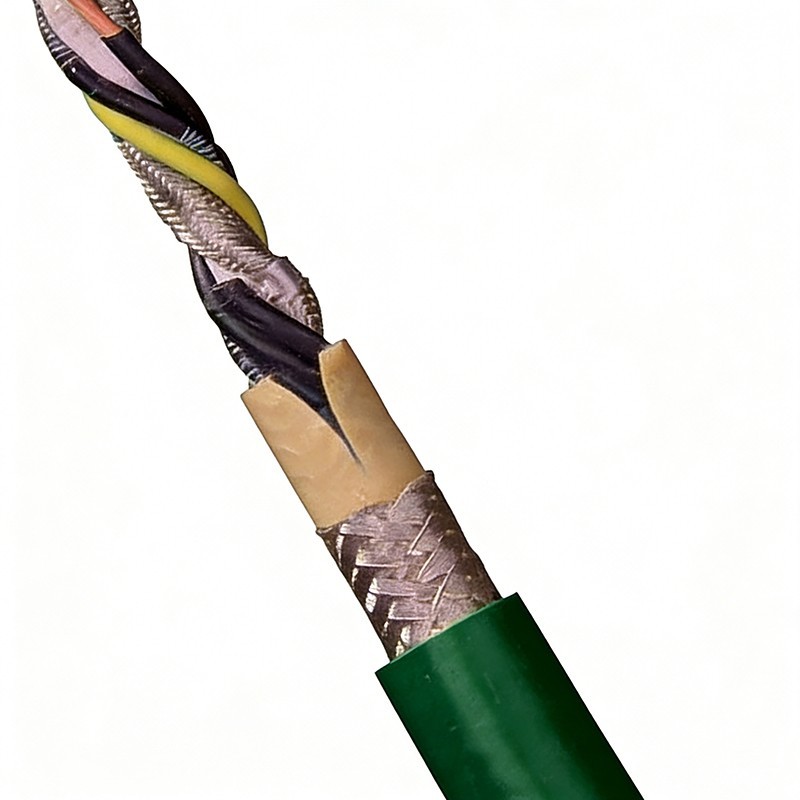

High-Load PVC Servo Cable is built for heavy-load industrial applications.
This High-Load PVC Servo Cable uses high-strength PVC jacket and dual shielding to ensure anti-interference in harsh environments. With a bending radius of 7.5×D, it supports long-stroke motion up to 100m and high-speed operation. This High-Load PVC Servo Cable is widely used in three-dimensional warehouses and heavy-duty conveying systems.
Service life guaranteed by warranty commitment
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
|||||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
||
|
Overhead |
Glide |
|||||||
|
＋5/＋15 |
10 |
80 |
≤100 |
10 |
11 |
12 |
||
|
＋15/+60 |
5 |
7.5 |
8.5 |
9.5 |
||||
|
+60/+70 |
10 |
11 |
12 |
|||||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||||
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Typical Application Scenarios
• For high load
• Mild oil resistance
• For indoor use; also applicable when outdoor temperature exceeds 5°C.
• Suitable for overhead applications and taxiing applications with a travel distance of less than 100 meters.
• Elevated warehouse storage and retrieval equipment, processing equipment/packaging machinery, rapid conveying systems, indoor cranes
CF21.UL cable is used in filament spinning equipment.
Features
• CF21.UL uses high-purity bare copper conductors and flexible PVC insulation for medium-load drag chains. Its low-temp flexible sheath resists hardening; single-layer braided shielding ensures stable control signals with a compact structure.
• Suitable for medium dynamic stress automation, it offers good oil and abrasion resistance for stable general industrial use. Supports standard acceleration and speed, with voltage rating for control circuits and basic flame retardancy.
Advantages
• The soft structure makes routing easier in cabinets and drag chains with limited space, without kinking or damaging during installation.
• The shielding structure effectively reduces signal fluctuation caused by common equipment interference, ensuring normal operation of control systems.
FAQ
Is this high-load PVC servo cable resistant to oil, wear, and high acceleration?
Yes, it has excellent oil resistance, wear resistance, and can withstand high acceleration up to 80m/s².
