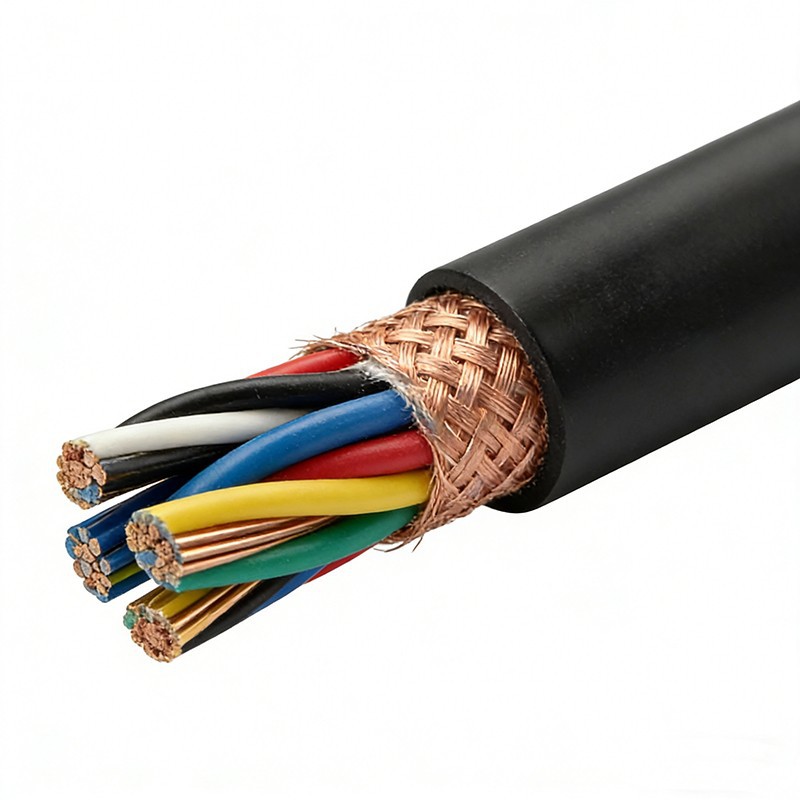

PVC shielded cable is a shielded flexible cable engineered for stable signal transmission.
This PVC shielded cable integrates a tinned copper braid shield (60% optical coverage) to reduce interference, paired with a flame-retardant PVC jacket. Rated at 300/500V and supporting 5 million double cycles, suitable for drag chain and fixed installations. Certified by CE, CCC, and NFPA, it's widely used in stone processing equipment and supply systems. We provide after-sales support.
Service life guaranteed by warranty commitment
|
Dual circulation |
1 Million Times |
3 Million Times |
5 Million Times |
|||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] Overhead |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
|
+5/+15 |
3 |
20 |
≤10 |
15 |
16 |
17 |
|
+15/+60 |
12.5 |
13.5 |
14.5 |
|||
|
+70/+70 |
15 |
16 |
17 |
|||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Typical Application Scenarios
Features
• Shielding Design: Tinned copper braid shield with 60% optical coverage, effectively blocking electromagnetic interference from inverters, motors, and other high-frequency equipment.
• Enhanced Structure: Builds on CF880's core design with an additional PVC inner sheath and low-viscosity PVC outer sheath for double protection.
Advantages
Interference-Free Transmission
The 60% coverage tin-plated shield ensures stable control signals in environments, reducing system errors.
Durable Shield Protection
Tin-plated copper braid resists corrosion and wear.
Economical Shielding
Offers professional anti-interference performance without the premium price of PUR or TPE cables, ideal for budget-constrained projects requiring signal stability.
FAQ
As a PVC shielded cable, what makes CF881's shielding effect stand out compared to ordinary shielded cables?
CF881 uses tinned copper braid shielding with 60% optical coverage. This design effectively blocks electromagnetic interference from industrial equipment like inverters and motors, ensuring stable signal transmission for control systems.
Can CF881 be used in drag chains with frequent reciprocating movements?
What is the maximum number of cycles it can withstand?
Yes, CF881 is specifically designed for drag chain applications. It supports up to 5 million double cycles (equivalent to 10 million one-way movements) under standard conditions (stroke ≤10m, speed 3m/s).
