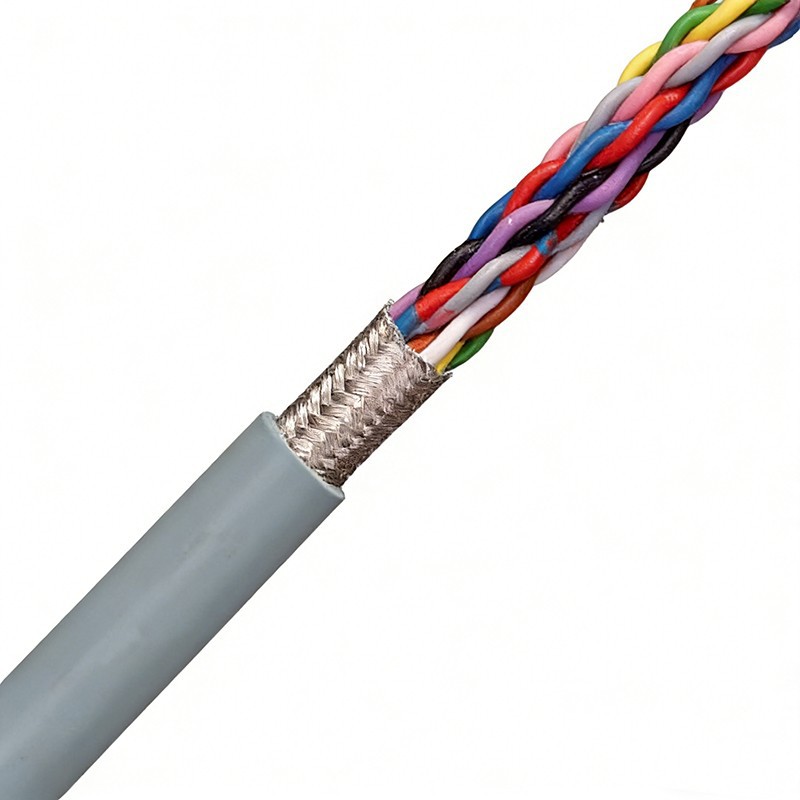

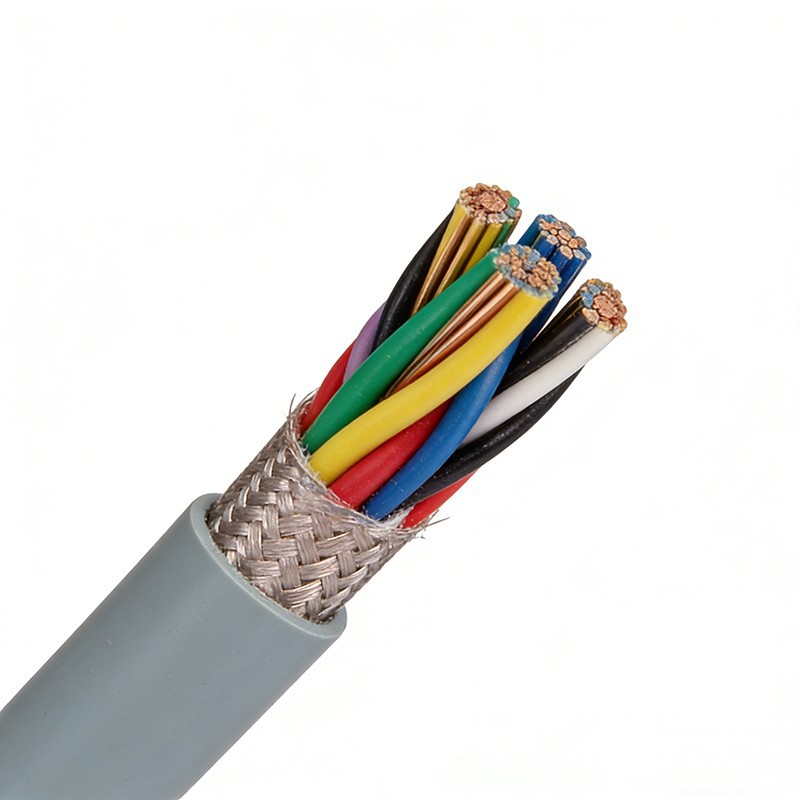

Flexible Thermocouple Cable is a precision data cable for industrial temperature measurement.
This Flexible Thermocouple Cable uses a PUR jacket for full oil resistance (Class 3) and -50°C to +80°C operating range, adapting to extreme environments. The shielded twisted pairs ensure accurate signal transmission from thermocouples to controllers. With 7.5xd bending radius and 1000 million double cycles, it's ideal for processing machinery and refrigeration equipment. Certified by CE and NFPA, the Flexible Thermocouple Cable offers custom core sizes and global shipping.
Service life guaranteed by warranty commitment
|
Dual circulation |
5Million Times |
7.5Million Times |
10Million Times |
|||||
|
Applicable Temperature Range[°C] |
Max Speed [m/s] |
Max Acceleration [m/s2] |
Travel Distance [m] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
R min. [Coefficient x d] |
||
|
Overhead |
Glide |
|
|
|
|
|
||
|
－25/－15 |
5 |
50 |
≤100 |
10 |
11 |
12 |
||
|
－15/+70 |
3 |
7.5 |
8.5 |
9.5 |
||||
|
+70/+80 |
10 |
11 |
12 |
|||||
|
In practical applications, it can achieve a higher number of dual cycles. |
||||||||
Product Code,Number Of Core Wires And Cross-Sectional Area,Maximum Outer Diameter,Copper Content,Weight
Typical Application Scenarios
• For extremely high loads
• fully oil-resistant
• Indoor Applications and Outdoor Applications of Conventional Solar Radiation
• Applicable to horizontal overhead and taxiing applications with a travel distance of less than 100 meters
• Elevated warehouse storage and retrieval equipment, processing equipment/machining tools, rapid conveying systems, Packaging industry, Refrigeration equipment
Features
• Engineered exclusively for high-load industrial data transmission, CF211.PUR features EN 60228-compliant fine bare copper strands, paired with high-mechanical-performance TPE insulation that boosts wear resistance under high-speed reciprocating motion. Its core adopts a reinforced twisted pair structure-each two cores stranded at an ultra-short pitch, then all pairs wrapped around a high-strength central tensile core, optimizing stress distribution and minimizing crosstalk for long-stroke drag chain use.
Advantages
• The Class 3 full oil-resistant PUR sheath outperforms the PVC version (CF211, Class 2) in oil-exposed scenarios, withstanding prolonged contact with industrial lubricants, coolants and hydraulic fluids-ideal for machine tools, refrigeration equipment and processing machinery with frequent oil splashes, eliminating the need for frequent cable replacement.
FAQ
CF12 is rated for extreme loads with 400m stroke and 100m/s² acceleration-how does its core stranding and TPE sheath enhance durability for such long-stroke, high-speed drag chain use?
CF12's core uses a reinforced anti-torsion stranding design: each twisted pair is stranded at an ultra-short pitch, then all pairs are wrapped around a high-strength tensile central core, distributing stress evenly during 10m/s overhead and 6m/s sliding motion. Its specialized low-viscosity TPE sheath (RAL 5011 dark blue) has ultra-low friction and high wear resistance, reducing drag chain abrasion by 40% compared to standard TPE sheaths. This structure supports 1000 million+ double cycles-no performance degradation even in 24/7 long-stroke drag chain operation.
